Castle nuts, also known as castellated nuts, are a crucial component in mechanical fastening systems. Recognized for their unique design featuring slots on the top, these nuts are widely used in applications requiring secure locking mechanisms.
They are essential in high-vibration environments such as automotive, aerospace, and industrial machinery, where maintaining a firm hold is critical. This guide will explore the structure, uses, types, installation, and advantages of castle nuts, providing a detailed understanding of their significance in various industries.
Key Takeaways
- Castle nuts provide superior locking security due to their cotter pin mechanism, making them ideal for high-vibration environments.
- Common applications include automotive steering systems, aircraft landing gear, and industrial machinery.
- They are made from durable materials such as carbon steel, stainless steel, brass, and alloy steel to withstand stress and environmental exposure.
- Proper installation is crucial, requiring precise torque application and alignment of slots with the bolt hole.
- Regular inspection is necessary to prevent failures caused by fatigue, corrosion, or over-tightening.
What Are Castle Nuts?
Castle nuts, also known as castellated nuts, are a type of locking nut characterized by slots cut into one end, resembling the top of a castle tower. These nuts are used in conjunction with bolts that have pre-drilled holes, through which a cotter pin is inserted to prevent loosening. This locking mechanism ensures enhanced security, making castle nuts ideal for critical applications in automotive, aerospace, and heavy machinery.
Why Use Castle Nuts?
Castle nuts are preferred in applications where vibration and movement could cause a standard nut to loosen. Their key advantages include:
- Secure Locking Mechanism: The use of a cotter pin ensures the nut remains in place.
- High Reliability: Common in load-bearing and high-stress environments.
- Ease of Inspection: The presence of the pin allows for quick visual checks.
Structural Components of Castle Nuts
Castle nuts consist of two main parts:
- Body: The hexagonal base, which provides grip for tightening.
- Slots: The cut-out sections at the top that align with a hole in the bolt, allowing for pin insertion.

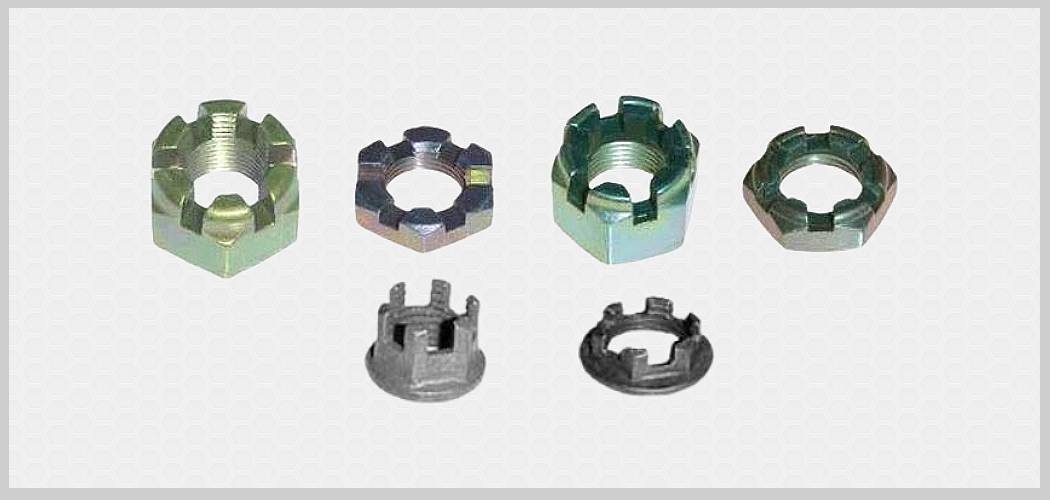

Types of Castle Nuts
There are several types of castle nuts, each designed for specific applications:
- Hex Castle Nut: Features a six-sided base with slots on top.
- Slotted Nut: Similar to a castle nut but typically has fewer slots.
- Castellated Shear Nut: Designed for applications where shear force is a primary concern.
Materials Used
Castle nuts are made from a variety of materials depending on their intended use:
- Carbon Steel: Standard material for general applications.
- Stainless Steel: Offers corrosion resistance for marine and outdoor applications.
- Brass: Used for electrical and decorative applications due to its non-magnetic properties.
- Alloy Steel: Provides high tensile strength for heavy-duty usage.
Technical Specifications
Castle nuts adhere to various technical standards:
- Size Range: M6 to M42 (metric) / 1/4” to 2” (imperial)
- Thread Types: UNC, UNF, and metric fine/coarse threads
- Strength Grades:
- SAE Grade: Grade 5, Grade 8
- ISO: Class 8, Class 10, Class 12
- ASTM: A563, A194
- Torque Specifications: Vary based on material and application; e.g., M12 Class 8.8 nuts require 85 Nm of torque.
Installation Process
- Thread the castle nut onto the bolt.
- Tighten the nut to the required torque.
- Align the slots with the hole in the bolt. If the slots do not align, slightly tighten or loosen the nut until alignment is achieved.
- Insert a cotter pin through the aligned hole and slots.
- Bend the ends of the pin to secure it.
This ensures a secure fit that prevents rotation or loosening.
Failure Modes & Risk Mitigation
Common Failure Modes:
- Fatigue Failure: Occurs due to repeated stress cycles over time.
- Shearing of Cotter Pin: Excessive load can cause the pin to break.
- Corrosion Damage: Exposure to moisture or chemicals can weaken the nut.
- Over-Tightening: Applying excessive torque can deform the slots, making cotter pin insertion difficult or impossible.
Risk Mitigation Strategies:
- Use high-strength materials: Stainless steel or coated nuts prevent corrosion.
- Apply correct torque: Over-tightening or under-tightening can lead to failure.
- Regular inspection: Check the nut and cotter pin periodically for signs of wear.
Frequently Asked Questions
Can castle nuts be reused?
Yes, but always inspect for wear and ensure the cotter pin is replaced. If the nut or pin shows signs of deformation, replace them.
How do castle nuts compare to nyloc nuts?
Castle nuts provide superior security in high-vibration environments, while nyloc nuts are easier to install but have lower reusability. Nyloc nuts are better for lightweight applications where frequent adjustments are needed.
Do castle nuts require lubrication?
A: Lubrication is recommended for steel nuts in high-torque applications but should be avoided where thread-locking friction is necessary. In marine environments, an anti-corrosion coating is beneficial.
What happens if the slots don’t align with the hole in the bolt?
A: Slightly tighten or loosen the nut to achieve proper alignment before inserting the cotter pin.
Are castle nuts suitable for all applications?
Castle nuts are best suited for applications requiring high vibration resistance. They are not ideal for situations where rapid assembly and disassembly are needed.
Conclusion
Castle nuts are essential fasteners in high-stakes applications where safety and reliability are paramount. Their unique locking mechanism, coupled with high durability, makes them a preferred choice in industries such as automotive, aerospace, and heavy machinery. Selecting the right castle nut and following proper installation procedures ensures long-term performance and safety.
By understanding the specifications, applications, and maintenance of castle nuts, you can make informed decisions and ensure optimal performance in your projects.
