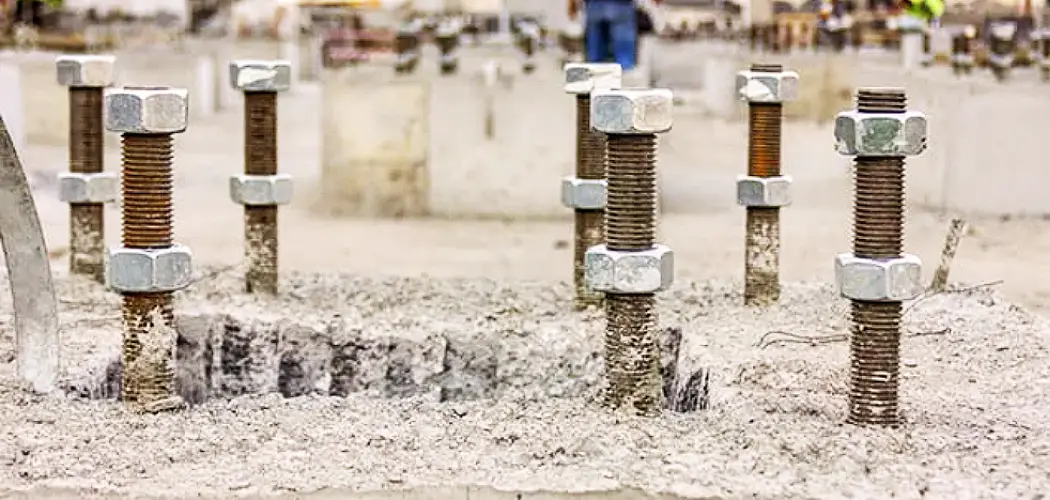

Anchor bolts play a critical role in securing structures, machinery, and heavy equipment to concrete foundations. A proper installation ensures durability, load-bearing capability, and compliance with safety standards. This guide provides an in-depth look at anchor bolt installation, including types, load ratings, safety measures, troubleshooting, and more.
What Are Anchor Bolts?
Anchor bolts are heavy-duty fasteners designed to attach objects or structures to concrete. They transfer loads between the attached structure and the concrete, ensuring stability under forces such as wind, seismic activity, and vibrations.
Anchor bolts are commonly used for:
✔ Securing steel columns in buildings
✔ Attaching machinery and equipment to concrete floors
✔ Fastening handrails, fences, and guardrails
✔ Installing heavy-duty shelving and storage racks
✔ Supporting bridges, towers, and industrial structures
Why Install Anchor Bolts?
Installing anchor bolts in an existing concrete foundation is necessary for:
- Structural Stability – Prevents movement or failure of mounted equipment and structures.
- Load Distribution – Transfers forces safely into the concrete.
- Safety & Compliance – Meets building codes and regulations.
- Resistance to Forces – Withstands vibrations, seismic activity, and environmental loads.
Types of Anchor Bolts
Choosing the right anchor bolt depends on load requirements, concrete condition, and environmental factors.
| Anchor Type | Best For | Advantages | Disadvantages |
|---|---|---|---|
| Wedge Anchors | Heavy loads in solid concrete | High holding power, simple installation | Permanent, can cause concrete stress |
| Sleeve Anchors | Brick, block, or weaker concrete | Works in hollow materials | Less holding strength than wedge anchors |
| Drop-In Anchors | Flush-mounting in solid concrete | Clean finish, no protrusions | Requires setting tool, not for dynamic loads |
| Epoxy/Chemical Anchors | High-strength applications | Works in cracked concrete, corrosion-resistant | Requires precise mixing and curing time |
| Expansion Bolts | Vibration-prone environments | Holds under extreme force | May crack concrete if over-tightened |
Choosing the Right Anchor Bolt
- Use wedge anchors for heavy-duty industrial applications.
- Use sleeve anchors for lightweight attachments in hollow block or weaker concrete.
- Use drop-in anchors when flush-mounting is necessary.
- Use epoxy anchors for cracked concrete or extreme load-bearing needs.
Load Ratings and Specifications
Correct anchor selection depends on the load capacity and spacing requirements.
Recommended Load Capacities (General Guidelines)
| Bolt Diameter | Tensile Load Capacity | Shear Load Capacity | Minimum Embedment Depth |
|---|---|---|---|
| 3/8 inch | 1,200 lbs | 900 lbs | 1.5 inches |
| 1/2 inch | 2,500 lbs | 1,800 lbs | 2.25 inches |
| 5/8 inch | 4,000 lbs | 3,000 lbs | 2.75 inches |
| 3/4 inch | 6,500 lbs | 4,800 lbs | 3.5 inches |
Spacing and Edge Distance
- Bolt Spacing: Minimum 10 bolt diameters apart to prevent stress concentration.
- Edge Distance: At least 5 bolt diameters from concrete edges to avoid cracking.
- Concrete Thickness: Should be at least 2 times the anchor’s embedment depth.
Concrete Strength Considerations
- Minimum recommended strength: 2,500 psi (17 MPa).
- For weaker concrete, use epoxy anchors or reinforce the area before drilling.
Step-by-Step Installation Guide
Tools and Materials Needed
✔ Anchor bolts (appropriate type and size)
✔ Rotary hammer drill (for holes larger than ½ inch)
✔ Masonry drill bits (carbide-tipped)
✔ Torque wrench (ensures proper tightening)
✔ Blower and wire brush (cleans holes before bolt insertion)
✔ Vacuum cleaner (removes residual dust)
✔ Safety gear (goggles, gloves, dust mask, hearing protection)
✔ Marker & measuring tape (for precise placement)
✔ Epoxy or adhesive (for chemical anchors)
✔ Utility scanner (checks for pipes, wires, or rebar before drilling)
Step 1: Check Concrete Condition
- Ensure the foundation is solid and free of major cracks.
- Use epoxy anchors if installing in cracked concrete.
- Check the thickness to ensure proper bolt embedment.
Step 2: Locate Utilities
- Use a utility scanner to detect hidden pipes, electrical lines, or rebar.
- Relocate the hole if you detect obstructions.
Step 3: Measure and Mark
- Use a marker and measuring tape for precise placement.
- Double-check spacing before drilling.
Step 4: Wear Safety Gear
- Goggles to protect against debris.
- Gloves for hand safety.
- Dust mask/respirator to prevent silica dust inhalation.
- Hearing protection when using a rotary hammer drill.
Step 5: Drill the Holes
- Use a rotary hammer drill for larger holes.
- Drill to the recommended depth (check manufacturer specs).
- Clean the hole properly:
- Blow out dust with compressed air.
- Brush the hole with a steel wire brush.
- Vacuum the remaining debris.
Step 6: Insert the Anchor Bolts
- Wedge Anchors: Insert and gently tap until fully seated.
- Drop-In Anchors: Use a setting tool to expand them.
- Epoxy Anchors: Fill the hole with adhesive before inserting the bolt.
Step 7: Torque the Bolts
- Use a torque wrench to tighten bolts to manufacturer specifications.
- Over-tightening can crack concrete or weaken the anchor.
Step 8: Verify Stability
- If a bolt moves, do NOT simply tighten it further.
- Remove and replace with a larger anchor or epoxy-based system.
Building Codes and Permits
- Many jurisdictions require engineered specifications for structural anchors.
- Some installations need special inspections to verify compliance.
- Follow standards from:
- ACI (American Concrete Institute)
- ASTM (American Society for Testing and Materials)
Troubleshooting Issues
What to Do If You Hit Rebar?
- Stop drilling immediately.
- Use a rebar-cutting drill bit if relocation is not an option.
Fixing Stripped or Damaged Bolts
- Drill a larger hole and use a bigger anchor.
- Switch to epoxy anchors for a stronger hold.
Dealing With Cracked Concrete
- Do not use expansion bolts (they can worsen cracks).
- Use chemical anchors, which bond better in cracks.
Maintenance & Inspection
Regular inspection ensures anchor bolts remain secure over time. Annual checks for corrosion, movement, or cracks help identify potential failures early. Retorquing bolts as needed prevents loosening due to vibrations. If visible wear is detected or a bolt repeatedly loosens, replacement is necessary to maintain structural integrity.
Cost Considerations
| Factor | Cost Estimate |
|---|---|
| Anchor Bolts (per unit) | $0.50 – $5.00 |
| Rotary Hammer Drill | $100 – $500 |
| Epoxy Adhesive | $30 – $100 |
| Professional Installation | $200 – $1,000+ |
Final Thoughts
Properly installed anchor bolts provide long-term security. Follow manufacturer guidelines, maintain correct spacing, and ensure full hole cleaning to achieve a strong hold. If the project is complex, consulting a structural engineer ensures compliance and safety.
